Tsurumi
GSZ2-75-4

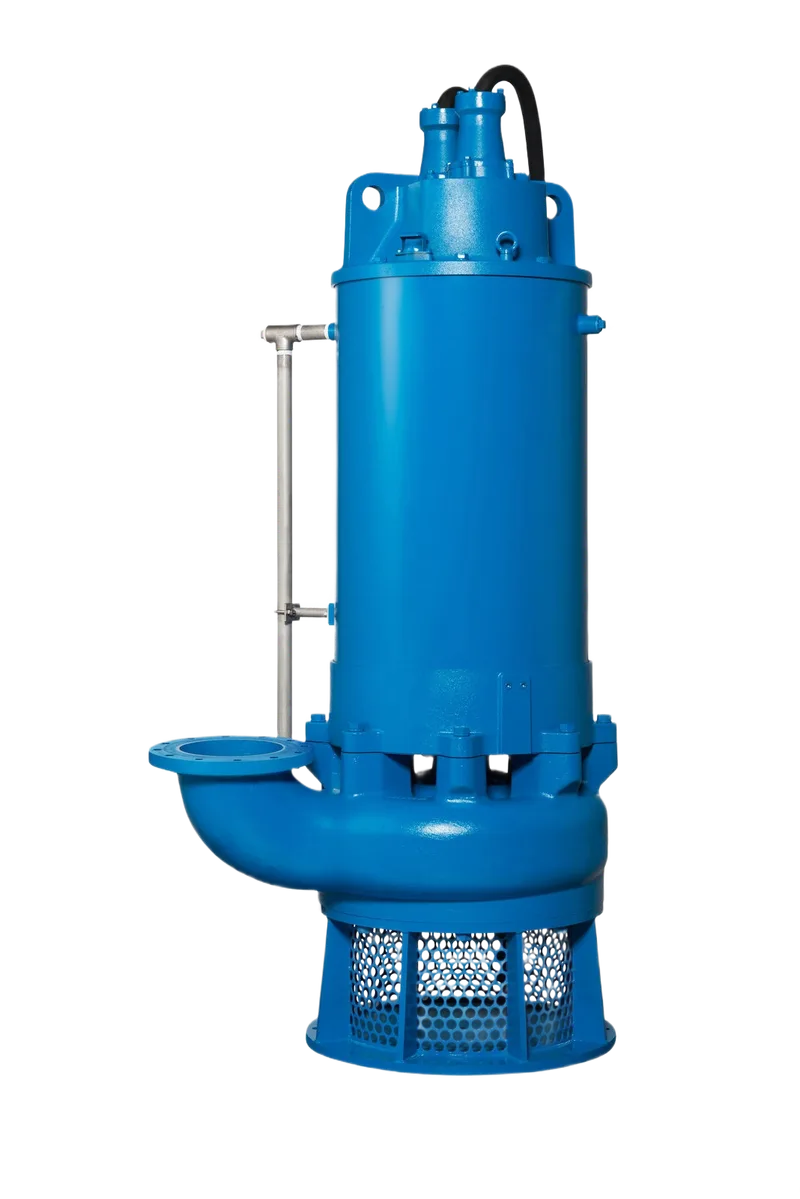

GSZ series, model GSZ2-75-4.
Key specifications
75 kW
Rated Power
380V-1000V
Rated Voltage
250 mm
Discharge
40 °C
Max. ambient temperature
5-9
pH
Hydraulics
| Impeller type | Closed impeller |
| Max. hydraulic efficiency | 62.2 % |
| Discharge | 250 mm |
Electrical
| Rated voltage | 380V-1000V |
| Frequency | 50 Hz |
| Motor phases | 3~ |
| N. of poles | 4 |
| Rpm | 1475 rpm |
| Rated Power P2 | 75 kW |
| Rated current | 147 A |
| Insulation class | F |
| Start | Star-delta |
| Starting mode | Star-delta |
Operating limits
| Max. ambient temperature | 40 °C |
| pH treated liquid | 5-9 |
| Max. density treated liquid | 1030 kg/m³ |
| Max. start/hour | 4 |
| Max. acoustic pressure level | < 70 dB |
| Wet/Dry use | WET |
Construction
| Degree of protection | IP 68 |
