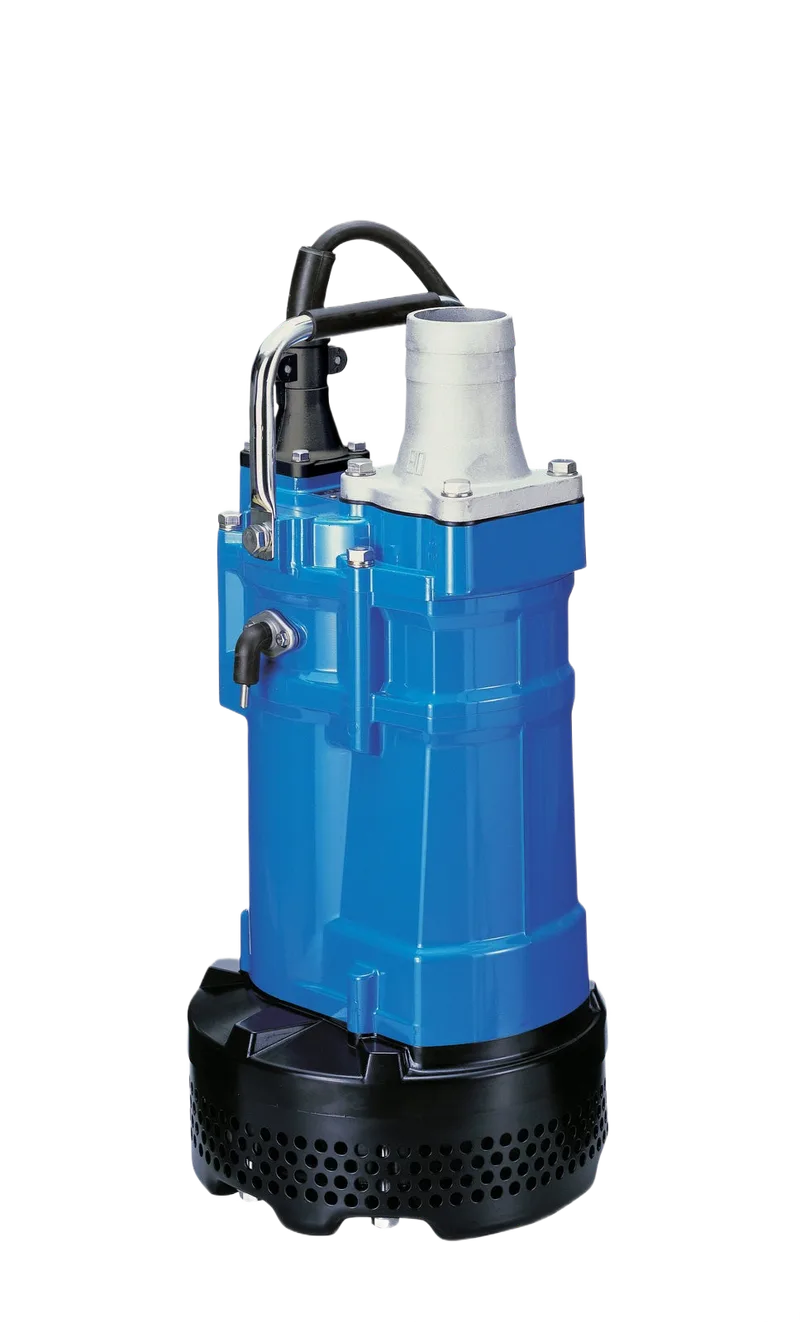

Tsurumi
KTVE2.75-51/61
KTVE series, model KTVE2.75-51/61.
Key specifications
0.75 kW
Rated Power
380V-1000V
Rated Voltage
50 mm
Discharge
5-9
pH
Hydraulics
| Impeller type | Vortex impeller |
| Max. hydraulic efficiency | 42 % |
| Discharge | 50 mm |
Electrical
| Rated voltage | 380V-1000V |
| Frequency | 50 Hz |
| Motor phases | 3~ |
| N. of poles | 2 |
| Rpm | 2783 rpm |
| Rated Power P2 | 0.75 kW |
| Rated current | 2 A |
| Insulation class | E |
| Start | Direct starting |
| Starting mode | Direct starting |
Operating limits
| pH treated liquid | 5-9 |
| Max. density treated liquid | 1030 kg/m³ |
| Max. start/hour | 10 |
| Max. acoustic pressure level | < 70 dB |
| Wet/Dry use | WET |
Construction
| Degree of protection | IP 68 |
