LH

Tsurumi

LH

30 models

LH is the high-head dewatering family, reaching the largest motor sizes in our dewatering catalogue for very deep lifts. The 30 published LH models on this page span 3–110kW. It is specified for deep mine dewatering and long vertical discharge columns.

30 results

View all products

30 results

LH High-Head Dewatering

Rated power: 11 – 110
Discharge: 100 – 200
Free passage: ≤ 8
Max head: 130

LH High-Head Dewatering

LH23.0W-51/61

Rated power: 3 kW
Voltage: 380V-1000V
Discharge: 50 mm
Max ambient: 40 °C
pH range: 5-9

LH23.0W-51/61

LH23.0W-51/61

Rated power: 3 kW
Voltage: 525V-1000V
Discharge: 50 mm
Max ambient: 40 °C
pH range: 5-9

LH23.0W-51/61

LH25.5W-51/61

Rated power: 5.5 kW
Voltage: 380V-1000V
Discharge: 50 mm
Max ambient: 40 °C
pH range: 5-9

LH25.5W-51/61

LH311W-51/61

Rated power: 11 kW
Voltage: 380V-1000V
Discharge: 80 mm
Max ambient: 40 °C
pH range: 5-9

LH311W-51/61

LH322W-52/62

Rated power: 22 kW
Voltage: 380V-1000V
Discharge: 80 mm
Max ambient: 40 °C
pH range: 5-9

LH322W-52/62

LH33.0-51/61

Rated power: 3 kW
Voltage: 380V-1000V
Discharge: 80 mm
Max ambient: 40 °C
pH range: 5-9

LH33.0-51/61

LH33.0-51/61

Rated power: 3 kW
Voltage: 525V-1000V
Discharge: 80 mm
Max ambient: 40 °C
pH range: 5-9

LH33.0-51/61

LH4110W-51/61

Rated power: 110 kW
Voltage: 525V-1000V
Discharge: 100 mm
Max ambient: 40 °C
pH range: 5-9

LH4110W-51/61

LH4110W-51/61

Rated power: 110 kW
Voltage: 380V-1000V
Discharge: 100 mm
Max ambient: 40 °C
pH range: 5-9

LH4110W-51/61

LH422-52/62

Rated power: 22 kW
Voltage: 380V-1000V
Discharge: 100 mm
Max ambient: 40 °C
pH range: 5-9

LH422-52/62

LH430-52/62

Rated power: 30 kW
Voltage: 380V-1000V
Discharge: 100 mm
Max ambient: 40 °C
pH range: 5-9

LH430-52/62

LH430W-52/62

Rated power: 30 kW
Voltage: 380V-1000V
Discharge: 100 mm
Max ambient: 40 °C
pH range: 5-9

LH430W-52/62

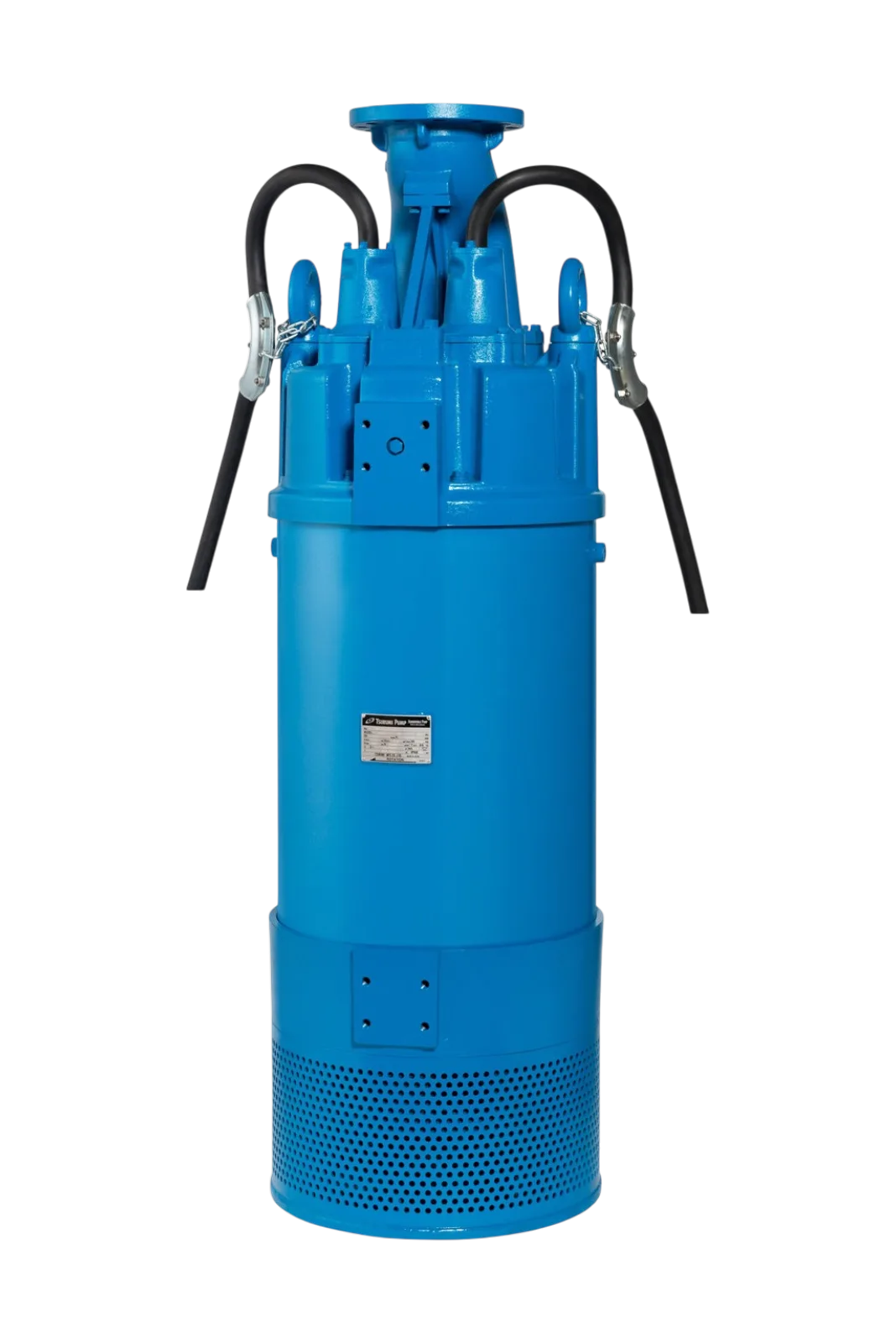

LH6110-51/61

Rated power: 110 kW
Voltage: 380V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH6110-51/61

LH6110-51/61

Rated power: 110 kW
Voltage: 525V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH6110-51/61

LH615-52/62

Rated power: 15 kW
Voltage: 380V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH615-52/62

LH622-52/62

Rated power: 22 kW
Voltage: 380V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH622-52/62

LH637-51/61

Rated power: 37 kW
Voltage: 525V-1000V
Discharge: 150 mm
Free passage: 6.00 mm
Max ambient: 40 °C
pH range: 5-9

LH637-51/61

LH637-51/61

Rated power: 37 kW
Voltage: 380V-1000V
Discharge: 150 mm
Free passage: 6.00 mm
Max ambient: 40 °C
pH range: 5-9

LH637-51/61

LH645-51/61

Rated power: 45 kW
Voltage: 380V-1000V
Discharge: 150 mm
Free passage: 6.00 mm
Max ambient: 40 °C
pH range: 5-9

LH645-51/61

LH645-51/61

Rated power: 45 kW
Voltage: 525V-1000V
Discharge: 150 mm
Free passage: 6.00 mm
Max ambient: 40 °C
pH range: 5-9

LH645-51/61

LH675-51/61

Rated power: 75 kW
Voltage: 380V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH675-51/61

LH690-50/60

Rated power: 90 kW
Voltage: 380V-1000V
Discharge: 150 mm
Max ambient: 40 °C
pH range: 5-9

LH690-50/60

LH8110-51/61

Rated power: 110 kW
Voltage: 525V-1000V
Discharge: 200 mm
Max ambient: 40 °C
pH range: 5-9

LH8110-51/61

Page 1 of 2
