Tsurumi

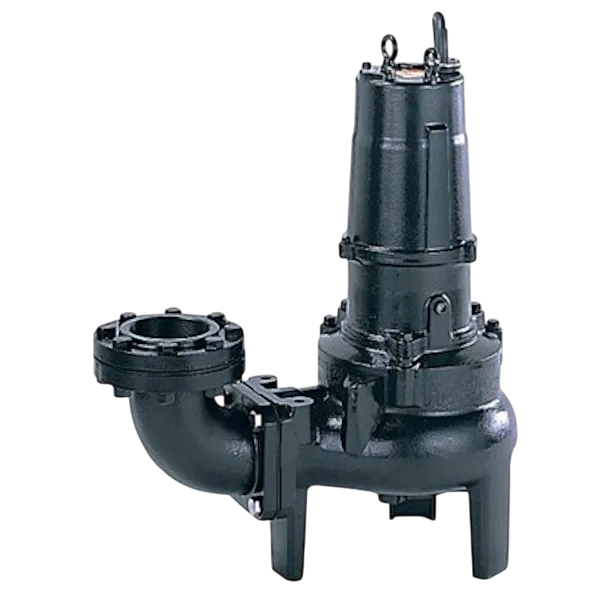

100UZ411-55/65
UZ series, model 100UZ411-55/65.
Key specifications
11 kW
Rated Power
380V-1000V
Rated Voltage
100 mm
Discharge
100.00 mm
Free passage
40 °C
Max. ambient temperature
5-9
pH
Hydraulics
| Free passage | 100.00 mm |
| Impeller type | Vortex impeller |
| Max. hydraulic efficiency | 46.8 % |
| Discharge | 100 mm |
Electrical
| Rated voltage | 380V-1000V |
| Frequency | 50 Hz |
| Motor phases | 3~ |
| N. of poles | 4 |
| Rpm | 1455 rpm |
| Rated Power P2 | 11 kW |
| Rated current | 24.5 A |
| Insulation class | F |
| Start | Star-delta |
| Starting mode | Star-delta |
Operating limits
| Max. ambient temperature | 40 °C |
| pH treated liquid | 5-9 |
| Max. density treated liquid | 1030 kg/m³ |
| Max. start/hour | 6 |
| Max. acoustic pressure level | < 70 dB |
| Wet/Dry use | WET |
Construction
| Degree of protection | IP 68 |
