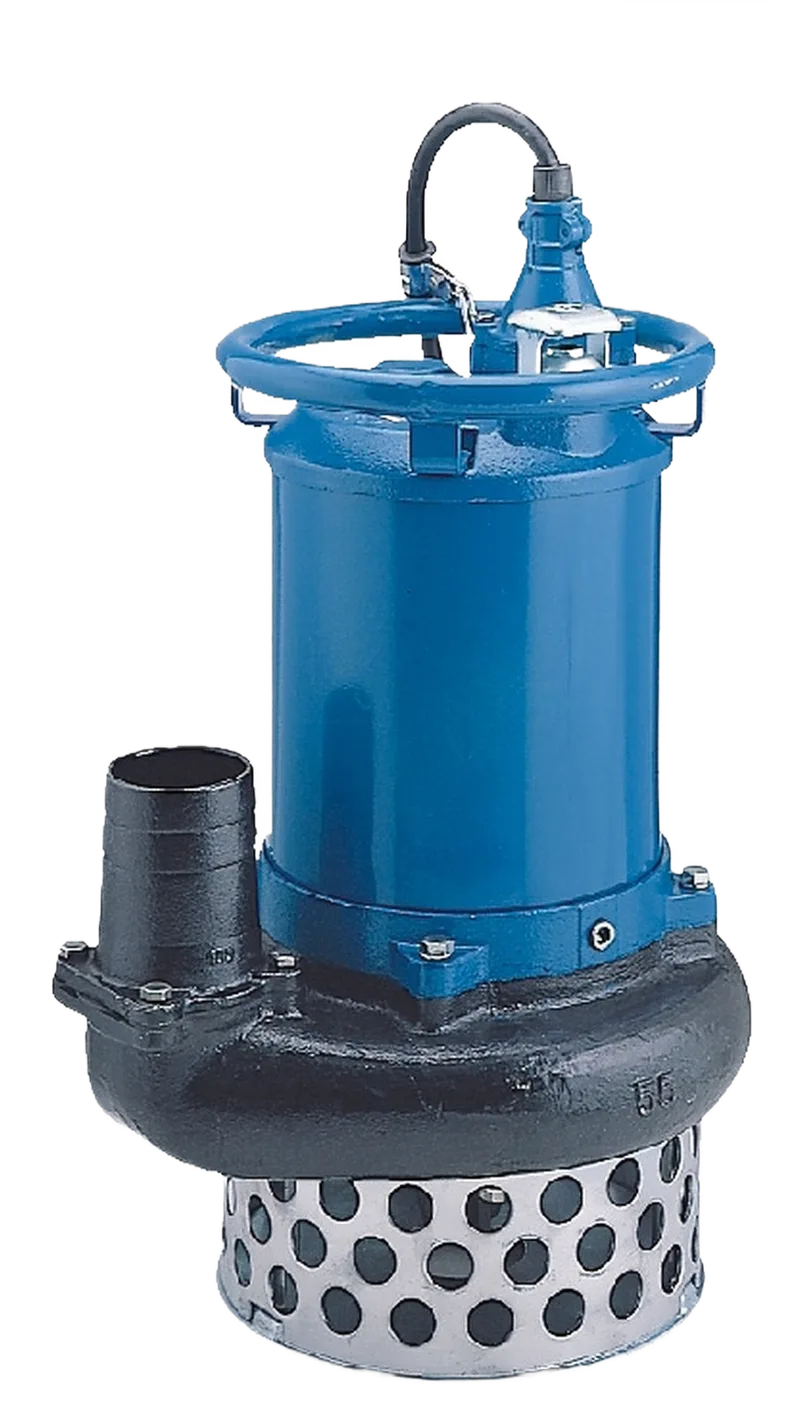

Tsurumi
NKZ33.7-51/61
NKZ series, model NKZ33.7-51/61.
Key specifications
3.7 kW
Rated Power
380V-1000V
Rated Voltage
80 mm
Discharge
40 °C
Max. ambient temperature
5-9
pH
Hydraulics
| Impeller type | Semi-open impeller with Agitator |
| Max. hydraulic efficiency | 48.9 % |
| Discharge | 80 mm |
Electrical
| Rated voltage | 380V-1000V |
| Frequency | 50 Hz |
| Motor phases | 3~ |
| N. of poles | 4 |
| Rpm | 1433 rpm |
| Rated Power P2 | 3.7 kW |
| Rated current | 8.8 A |
| Insulation class | F |
| Start | Direct starting |
| Starting mode | Direct starting |
Operating limits
| Max. ambient temperature | 40 °C |
| pH treated liquid | 5-9 |
| Max. density treated liquid | 1100 kg/m³ |
| Max. start/hour | 10 |
| Max. acoustic pressure level | < 70 dB |
| Wet/Dry use | WET |
Construction
| Degree of protection | IP 68 |
